10克/小时，5％浓度@ 2 LPM氧气进料，10 psi
125瓦，120 VAC（配220v变压器）
风冷
工作压力高达90 psi
手动调节控制（臭氧产量可在1-100％之间调节，线性）
*通过4-20 mA或来自过程监控器或PLC的0-10 VDC信号进行远程控制
*可选电压表显示臭氧生产水平
氧气流量计，1-10 LPM（将进料速率从2 LPM提高到10 LPM，将臭氧产量提高到15克/小时）
壁挂式玻璃纤维外壳18“×16”×10“可选配支架，用于臭氧发生器的台式使用
臭氧压力表（针阀调节臭氧电池压力，允许通过文丘里注射器进行真空操作）
臭氧供应电磁阀提供线路正向关闭（防止工艺水回流引起的细胞溢流）
氧气和臭氧管线的1/4“NPT连接
接通延时定时器在启动前启动氧气吹扫以干燥臭氧电池（消除由于内部湿气引起电池电弧放电的可能性）
带导向灯的主电源开关
臭氧待机和运行状态指示灯
产品照片具有代表性（显示可选的电压表），单位可能因选项而异。
20克/小时，5％浓度，4 LPM氧气，250瓦特，120伏特
英文说明HFL-10
-
10 grams/hour, 5% concentration @ 2 LPM oxygen feed, 10 psig
-
125 watts, 120 VAC
-
Air cooled
-
Operating pressure up to 90 psi
-

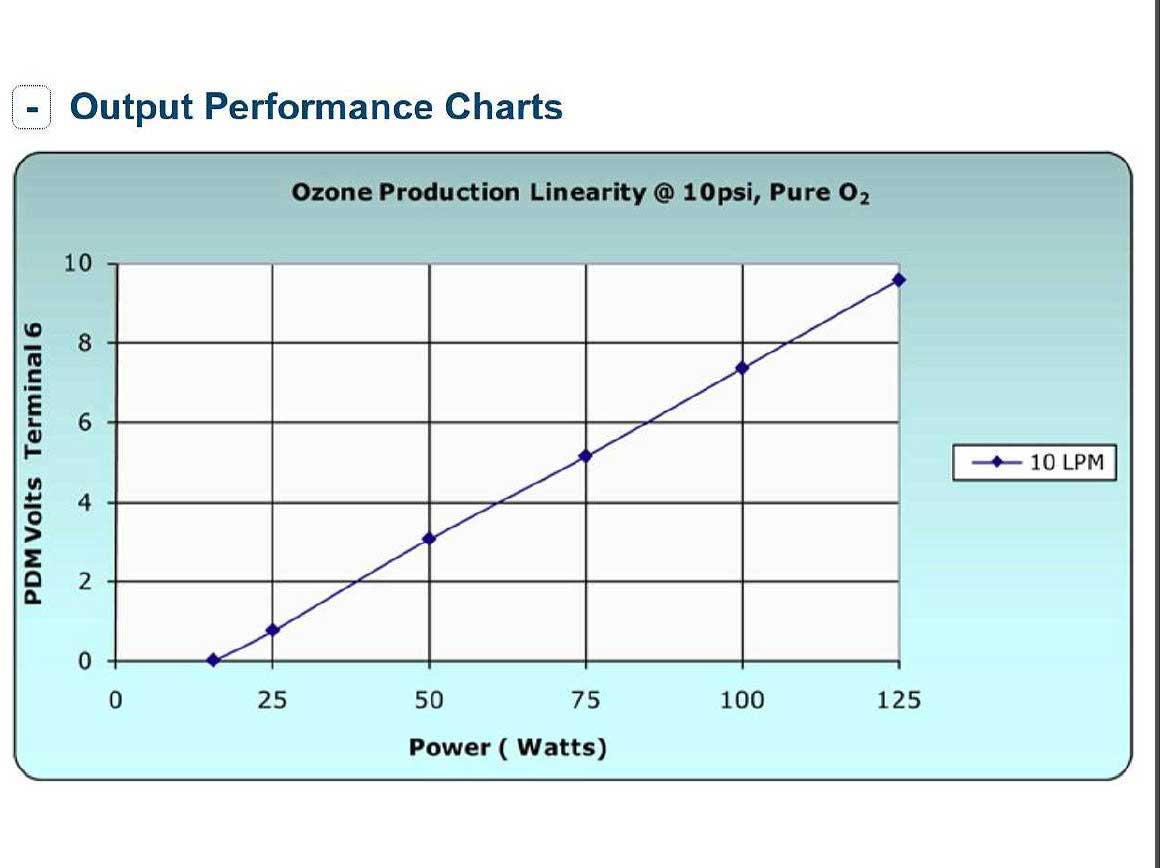

Manual turndown control (ozone production adjustable between 1-100%, linear)
-
equipped for remote control via 4-20 mA or 0-10 VDC signal from a process monitor or PLC
-
optional volt meter shows ozone production level
-
Oxygen flow meter, 1-10 LPM (increasing feed rate from 2 LPM to 10 LPM increases ozone production to 15 grams/hour)
-
Wall mount fiberglass enclosure 18" x 16" x 10" is available with optional stand for bench top use of ozone generator
-
Ozone pressure gauge (needle valve regulates ozone cell pressure and allows operation with vacuum by a venturi injector)
-
Ozone supply solenoid valve provides positive closure of ozone delivery line (prevents cell flooding by backflow of process water)
-
1/4” NPT connections for oxygen and ozone lines
-
On-delay timer initiates oxygen purge to dry ozone cell prior to startup (eliminates the possibility of cell arcing due to internal moisture)
-
Main power switch with pilot light
-
Ozone standby and running status pilot lights
-
Product photo is representative (shows the optional volt meter) and units may vary depending on options
HFL-20
20 grams/hour, 5% concentration, 4 LPM oxygen, 250 watts, 120 VAC
